1/16 Radius - 3.6 Deg 3D Tapered Ballnose - 1/4" Shank - TBN1-16

1/16 Radius - 3.6 Deg 3D Tapered Ballnose - 1/4" Shank - TBN1-16

$29.99 - $29.99
$29.99
$29.99 - $29.99
$29.99

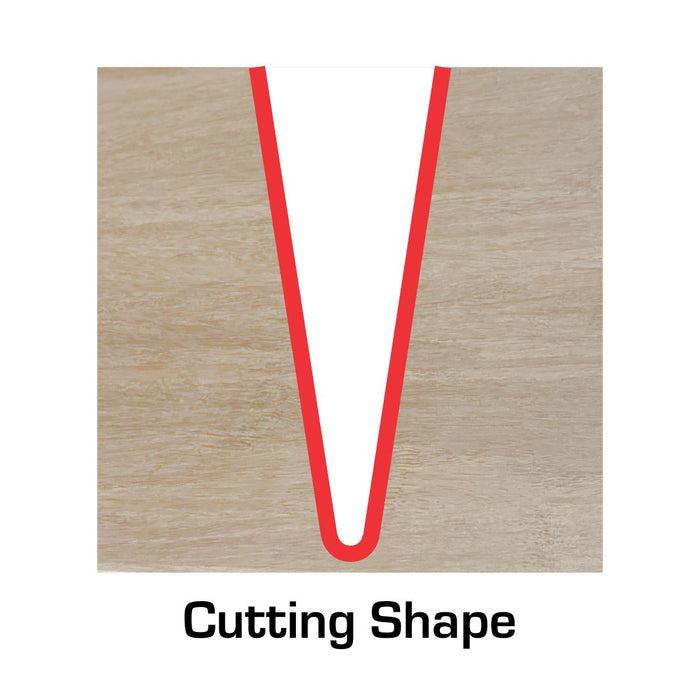

Carve faster without sacrificing detail with this 3.6° tapered ball nose bit, perfect for 3D carving, inlays, and deep engraving. The 1/16" radius tip allows for smooth, precise cuts while its solid carbide construction stays sharp longer, making it a go-to choice for efficient, high-quality CNC projects.

Recommended Feeds & Speeds

  • Hobby CNC with Router - 50 IPM
  • Hobby CNC with Spindle - 60 IPM
  • Industrial CNC - 60 IPM
  • Cut Depth Per Pass - .1875"
  • RPM's - 18,000
  • Plunge Rate = 50% of Feedrate (ex: Feedrate=100 IPM, Plunge Rate=50 IPM)
  • These Feedrates are recommended starting points, each CNC is different and feedrates will vary.

Bit Info

  • Radius: 1/16"
  • Angle Degree: 3.6 Degree
  • Rotation: Upcut
  • Cutting Height: 1.5"
  • Shank Size: 1/4"
  • Flutes: 3
  • Overall Length: 3
  • Material: Solid Carbide
  • Part #: TBN1-16

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Shawn Malcolm
High Quality -Great Product

CIC has a business methodology, coupled with a line of CNC products that are exceptional.

Each of my orders have been promptly filled and the order/delivery process is communicated to the buyer.

While unpacking my order I was impressed with a great packing job and pleased to read a hand written note to thank me for my purchase.

Wait, there’s more…. You can tell time & effort are put into writing this personal note; CIC thanks me for repeat business AND asks how the products a products from my previous order are working and reference specifically some of the previous products. I.e. how’s the 1/4-inch end mill bit from your last order working for you? CIC’s attention to detail speaks loudly.

For the product quality, I am 110% satisfied. The endmill and ball nose bits are like new, even after at least 10 uses on my CNC.

Cutting It Close has earned my repeat business!

User picture User picture User picture
K
Keith Frank
TBN Bit.

This is a fabulous bit. Bought a bit set from Woodcraft that included a 1/8 TBN (Tampered ball nose) and a 1/16 TBN. limited use dulled quickly and caused burn marks. Switched to the CIC TBN. OMG what a difference! Clean cutting no burn marks OMG Will be buying more!
