This three-piece O-Flute CNC Bit Set includes the most commonly used sizes for cutting plastics, acrylics, HDPE, and other soft materials. Perfect for makers who want clean, precise results with less melting and edge cleanup.
Includes:
(1) 1/4" O-Flute Bit – 1" Cutting Length
(1) 1/8" O-Flute Bit – 1/2" Cutting Length
(1) 1/16" O-Flute Bit - 3/8" Cutting Length
The single-flute design on both bits maximizes chip evacuation, keeps the tool running cool, and ensures crisp edges. Whether you're doing signage, templates, or small plastic parts, this set covers your bases with high-quality performance and reliability.
Feeds & Speeds Recommendation
Check the Photo in the listing for feedrate recommendations or watch this video here! Click to Watch Youtube Video
1/4" x 1" O'Flute Bit Info:
Diameter: 1/4"
Rotation: Upcut
Cutting Height: 1"
Shank Size: 1/4"
Flutes: 1
Overall Length: 2.5"
Material: Solid Carbide
Part #: OF221
1/8" x 1/2" O'Flute Bit Info:
Diameter: 1/8"
Rotation: Upcut
Cutting Height: 1/2"
Shank Size: 1/4"
Flutes: 1
Overall Length: 2"
Material: Solid Carbide
Part #: OF215
1/16" x 3/8" O'Flute Bit Info:
Diameter: 1/16"
Rotation: Upcut
Cutting Height: 3/8""
Shank Size: 1/8"
Flutes: 1
Overall Length: 1.5"
Material: Solid Carbide
Part #: OF1025
Customer Reviews
Overall rating: 4.9 / 5 from 4056 reviews.
2 panel glue up to make a 22” diameter 3D relief carving. CIC bits made this project a breeze. Already making plans for the next project - a 24” x 36” world topographic map.

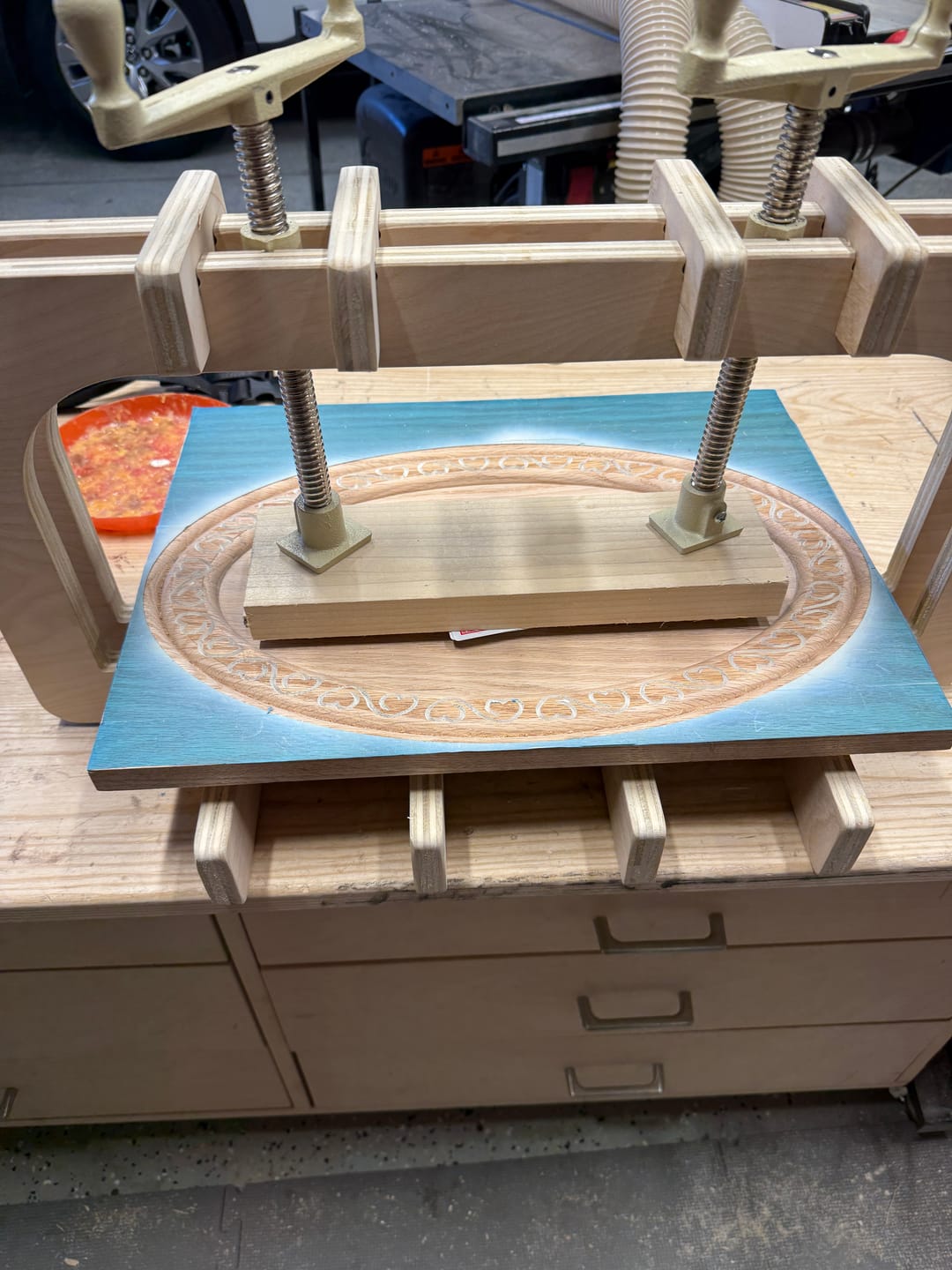

Used Carveco Maker and my Onefinity to cut this design out. Worked like a champ. I’ve used the press several times now in the shop. I’ve decided that I’ll probably never take it apart for storage, so I may end up glueing the pieces together. Very happy with the results.
