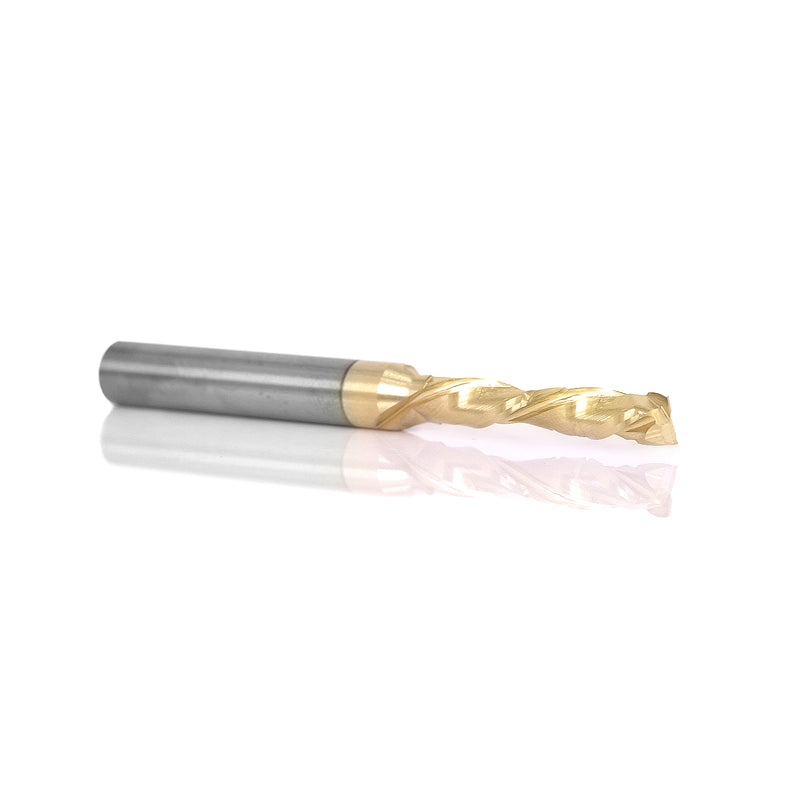

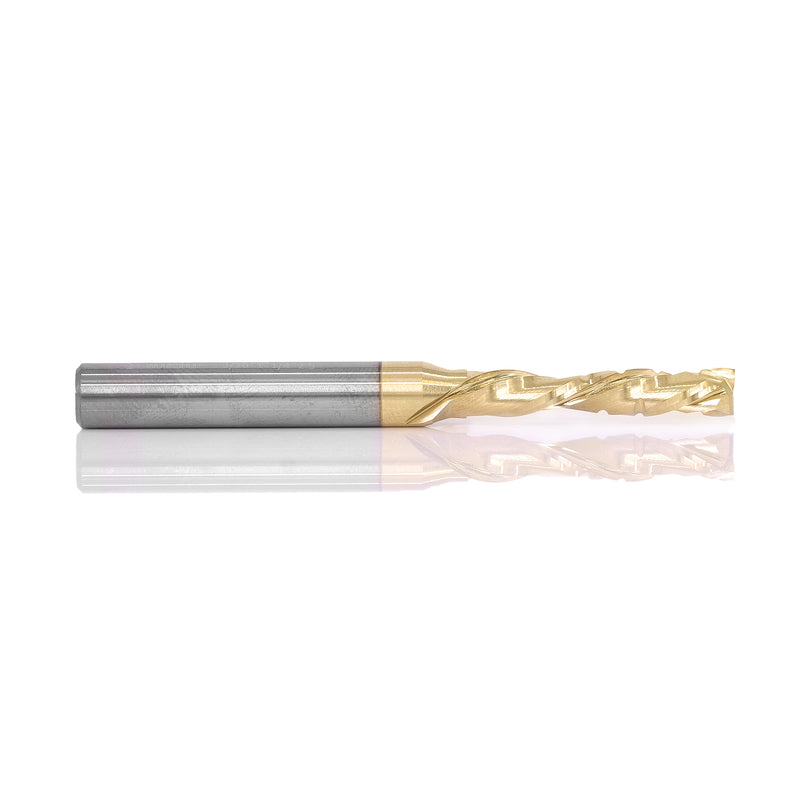

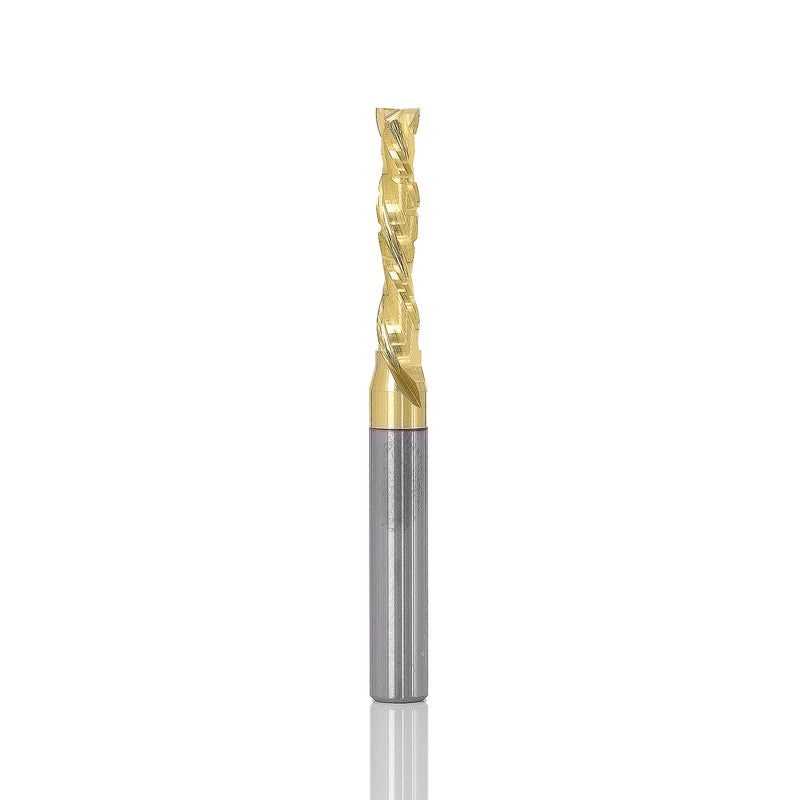

3/16" x 1" Chipbreaker Compression - 1/4" Shank - CM281CB

The 3/16" Chipbreaker Compression Bit is the go-to choice for medium-thickness hardwoods, plywood, and laminates. Ideal for profile cuts, pocketing, and small-to-medium projects, this bit combines precision and efficiency. Its unique upcut/downcut flute design pulls chips toward the center, delivering clean top and bottom edges with virtually no tear-out or fuzzies — perfect for hobby and production CNC users alike.

Recommended Feeds & Speeds

• Hobby CNC with Router - 60 IPM
• Hobby CNC with Spindle - 85 IPM
• Industrial CNC - 100 IPM
• Cut Depth Per Pass - .135"-.375"
• RPM's - 18,000
• Plunge Rate = 50% of Feedrate (ex: Feedrate=100 IPM, Plunge Rate=50 IPM)
• These Feedrates are recommended starting points, each CNC is different and feedrates will vary.

Bit Info

• Diameter: 3/16"
• Rotation: Compression
• Cutting Height: 1"
• Upcut Height: .125"
• Shank Size: 1/4"
• Flutes: 2
• Overall Length: 2.5"
• Material: Solid Carbide
• Part #: CM281CB
