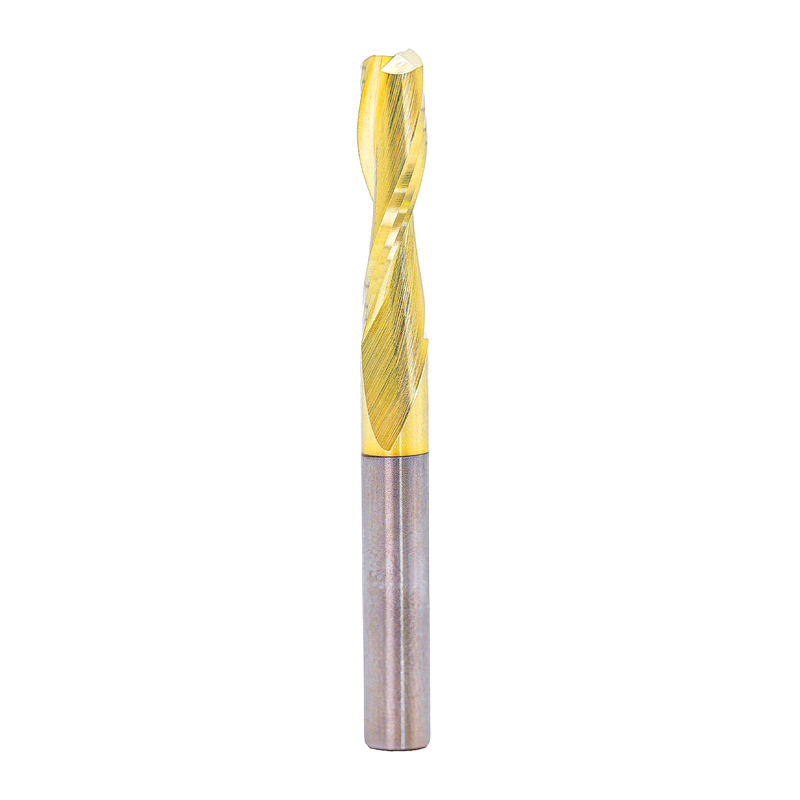

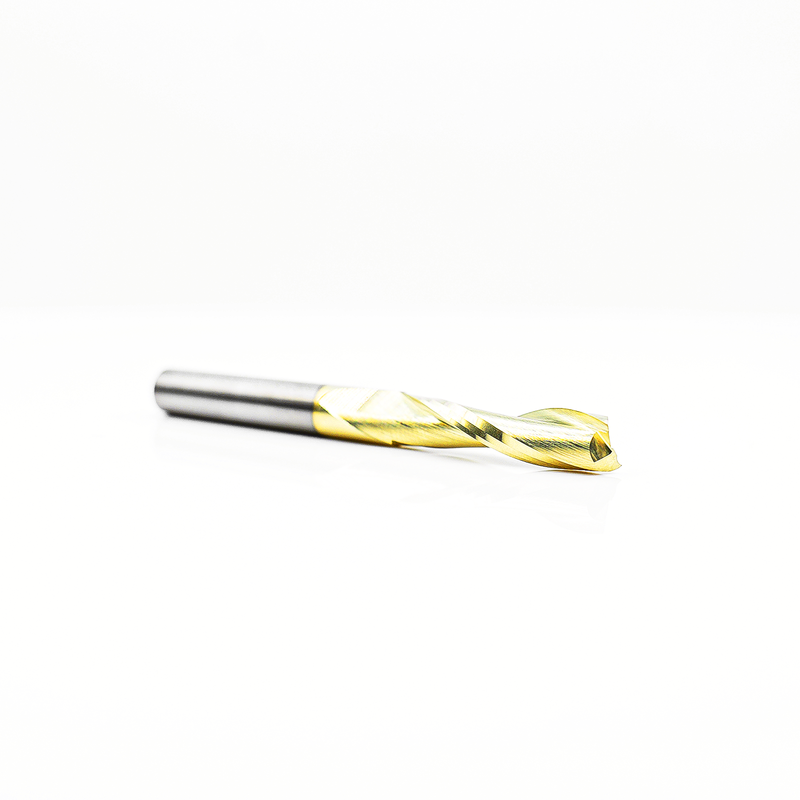

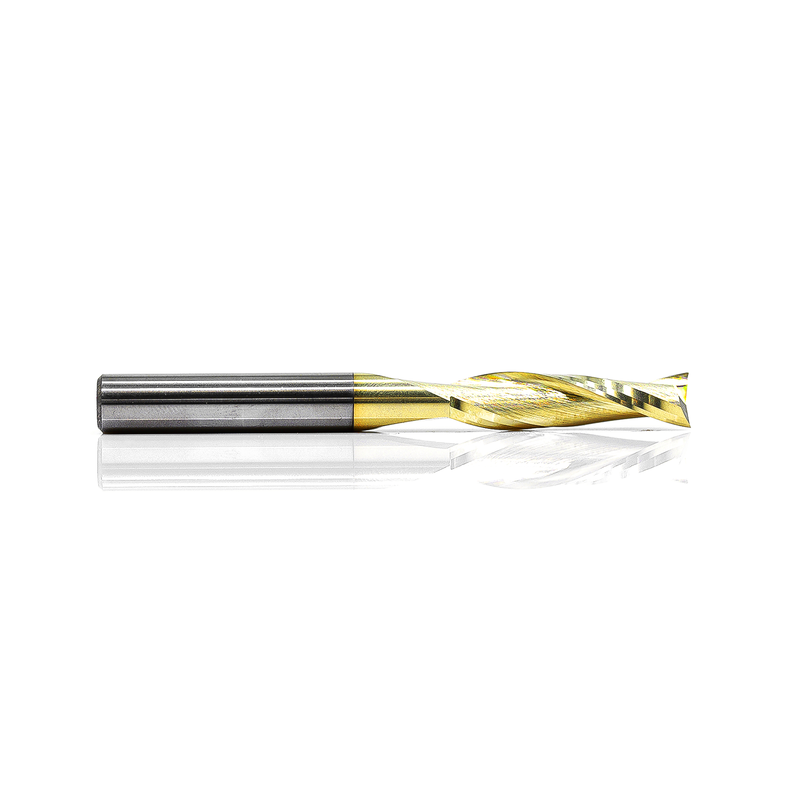

1/4" x 1" Upcut Spiral Endmill - 1/4" Shank - SRU120

A go to bit for pocketing and profiling almost all materials. The Upcut provides a clean bottom finish and the 1'' cutting length allows you to use this for most projects, great at pocketing and profiling.

Recommended Feeds & Speeds

• Hobby CNC with Router - 50 IPM
• Hobby CNC with Spindle - 80 IPM
• Industrial CNC - 120 IPM
• Cut Depth Per Pass - .25"
• RPM's - 18,000
• Plunge Rate = 50% of Feedrate (ex: Feedrate=100 IPM, Plunge Rate=50 IPM)
• These Feedrates are recommended starting points, each CNC is different and feedrates will vary.

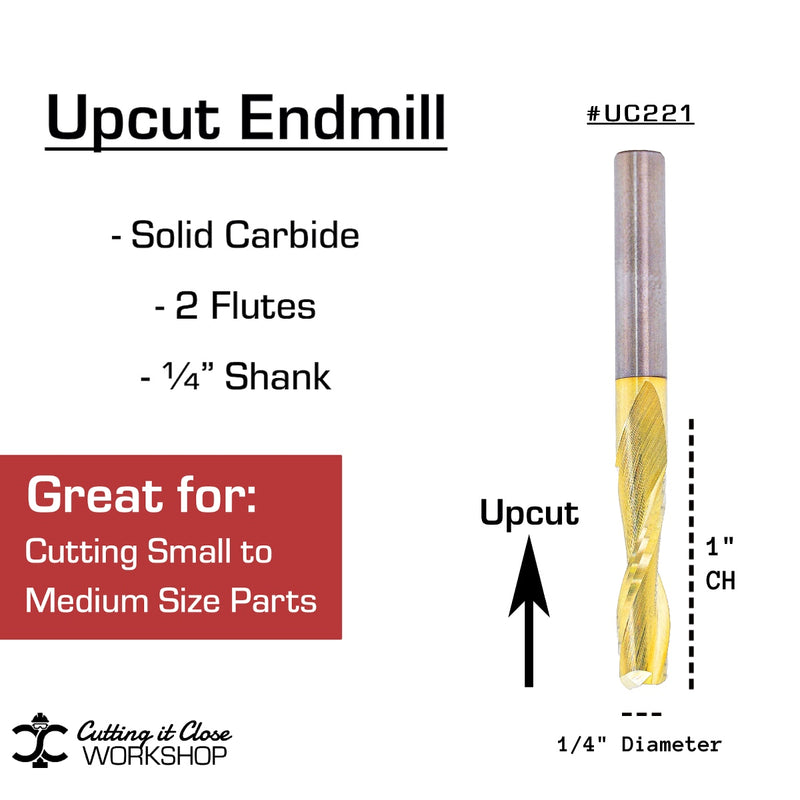

Bit Info

• MADE IN THE USA

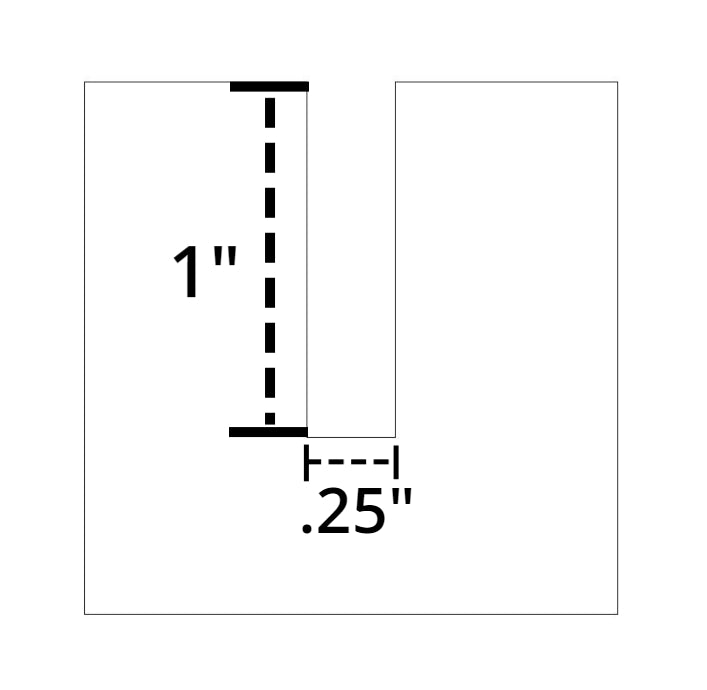

• Diameter: 1/4"
• Rotation: Upcut
• Cutting Height: 1"
• Shank Size: 1/4"
• Flutes: 2
• Overall Length: 2 1/2"
• Material: Solid Carbide
• Part #: SRU120
